We mainly design and make molds for pipe-processing. |
Molds for metal plates,welding jigs,inspection jigs and perforating jigs are also our speciality. |
|

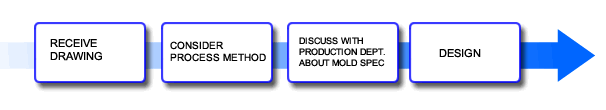

We design press molds considering plastic deformation, machining tolerance. |
Structure designs are made with 3 dimensional CAD system and data for |
processing is done with 3DNC program. |

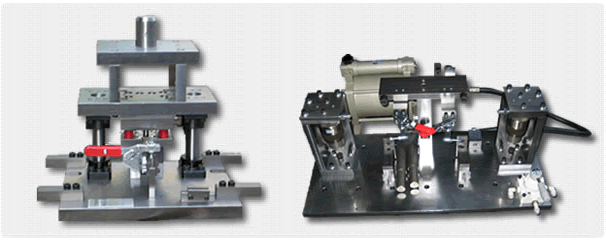

In addition to press molds,we handle welding jigs and inspection jigs from beginning to end |
|
|

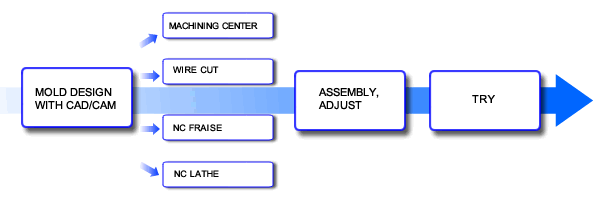

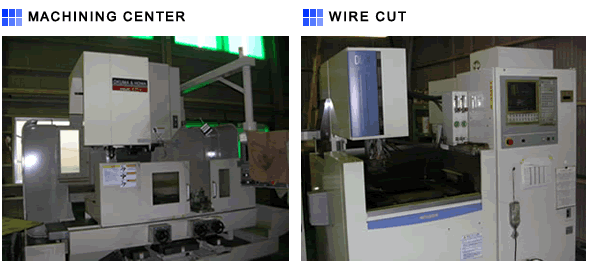

We make mold parts by processing with machining centers,wire cuts,NC fraises and NC |
lathes based on data designed with CAD/CAM |
After machining, molds are given a surface finish and assembled. Lastly, we conduct a press |
test to make final adjustments. |
|
|
|
|
|
|
CAD/CAM |
We use SAEILO JAPAN 3 dimensional CAD/CAM |
Φstation as software. |
|
A data conversion is processed by the direct |
interface and it realizes to make the most |
suitable data in a short time. |
|
|
|
|
|
|
|
